Deburr Master tools are constructed with precision machined, solid tool steel and can be used on machines such as single or multi-spindle drilling machines, lathes, NC machine tools, machining centers as well as hand tools.
Each tool is fitted with a replaceable standard blade made of high-speed steel in Double Action (DA), unless otherwise specified. Special tools and sizes are available. Please submit a blueprint for quotation.
Simply adjust the setscrew in the shank end for desired chamfer based on the hardness of the material and the RPM’s being used. No special skills are required.
Deburr Master® tools are available in both inch and metric sizes.
CLICK BELOW FOR MORE INFORMATION

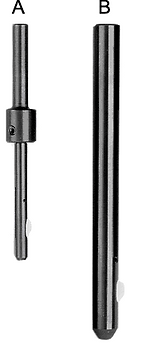

Type A Deburring Tool is available for holes with a diameter of 5/64" to 13/64" or 2.0mm to 5.0mm
Type B Deburring Tool is available for holes with a diameter of 7/32" to 1" or 5.5mm to 25.4mm
Type C Deburring Tool is available for holes with a diameter of 3/4" to 2" or 18mm to 50mm
Replaceable Blades are available in:
(DA) double acting for front and back deburring of holes
(BA) back acting for back only deburring of holes
DEBURR MASTER TOOL SETS
DBS-101 (INCH SET) Includes:
1/8, 5/32, 3/16, 7/32 & 1/4 deburring tools
one extra blade for each tool.
DBS-105 (METRIC SET) includes:
3.0, 4.0, 5.0, 6.0 AND 7.0 deburring tools
and one extra blade for each tool.
DEBURRING ON CROSS-H0LE
When deburring on a cross-hole, special attention must be paid to the relationship of the cross-hole diameter and that of the main bore.
The main bore must be at least three times larger than the cross-hole diameter or the hole will be damaged. If the main bore diameter is 3 to 12 times that of the cross-hole then a blade with a 45 degree angle should be used (available by special order). A standard blade can be used if the main bore diameter is more than 12 times that of the cross-hole.
MACHINING ANALYSIS FOR DEBURR MASTER TOOLS
Add Dwell time when feeding the tool through the workpiece to be deburred.
The illustration and analysis below are for standard analysis for a high-speed steel cutter.
